单词 | nuclear reactor |

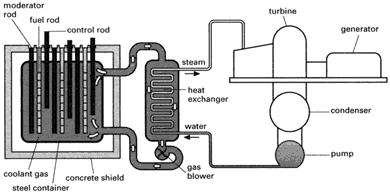

释义 | nuclear reactor A device in which a nuclear fission\nchain reaction is sustained and controlled in order to produce nuclear energy, ![]() A schematic diagram of a gas-cooled reactor In thermal reactors, neutrons are slowed down by collisions with light moderator atoms (such as graphite, deuterium, or beryllium); they are then in thermal equilibrium with the surrounding material and are known as thermal neutrons . In a heterogeneous thermal reactor the fuel and moderator are in separate solid and liquid phases (e.g. solid uranium fuel and a heavy water moderator). In the homogeneous thermal reactor the fuel and moderator are mixed together, for example in a solution, molten dispersion, slurry, or suspension. In the reactor core the fuel elements encase the fuel; in a heterogeneous reactor the fuel elements may fit into a lattice that also contains the moderator. The progress of the reaction is controlled by control rods, which when lowered into the core absorb neutrons and so slow down or stop the chain reaction. The heat produced by the nuclear reaction in the core is used to generate electricity by the same means as in a conventional power station, i.e. by raising steam to drive a steam turbine that turns a generator. The heat is transferred to the steam-raising boiler or heat-exchanger by the coolant. Water is frequently used as the coolant; in the case of the boiling-water reactor (BWR ) and the pressurized-water reactor (PWR ) water is both coolant and moderator. In the BWR the primary coolant drives the turbine; in the PWR the primary coolant raises steam in a secondary circuit for driving the turbine. In the gas-cooled reactor the coolant is a gas, usually carbon dioxide with an outlet temperature of about 350°C, or 600°C in the case of the advanced gas-cooled reactor (AGR ). In fast reactors, in which there is no moderator, the temperature is higher and a liquid-metal coolant is used, usually liquid sodium. Some fast reactors are used as converters or breeders. A converter reactor is one that converts fertile material (such as 238U) into fissile material (such as 239Pu). A breeder reactor produces the same fissile material as it uses. For example, a fast breeder reactor using uranium enriched with 239Pu as the fuel can produce more 239Pu than it uses by converting 238U to 239Pu. See also thermonuclear reactor |
